Specializing in Planters
Harvest International
Custom Built Planters
Harvest International
Planters Customized for your operation
By

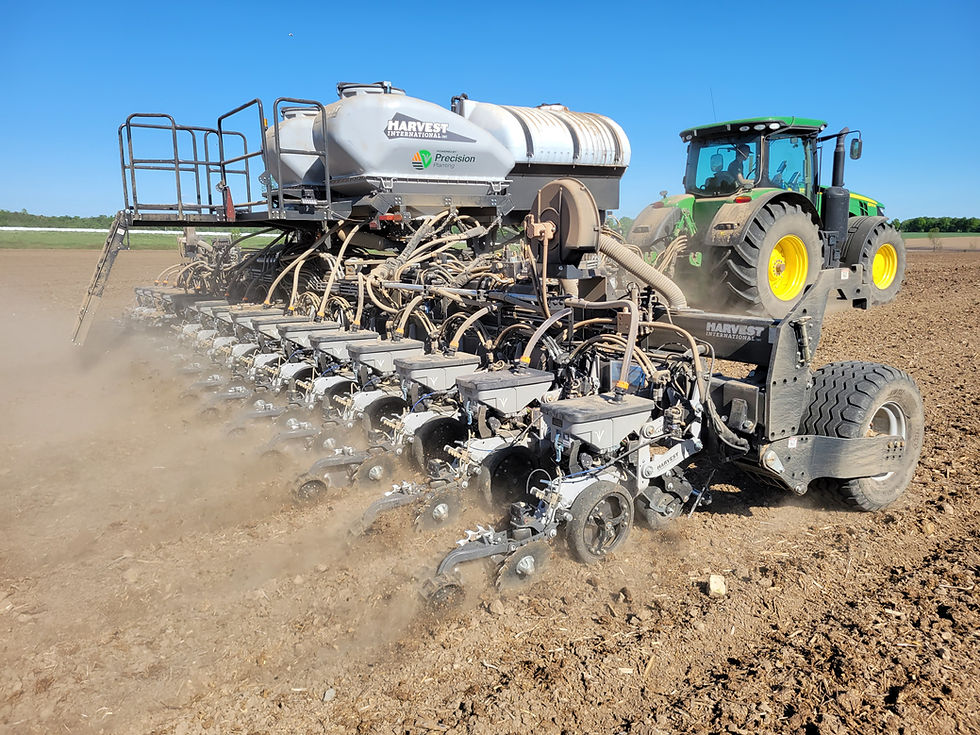

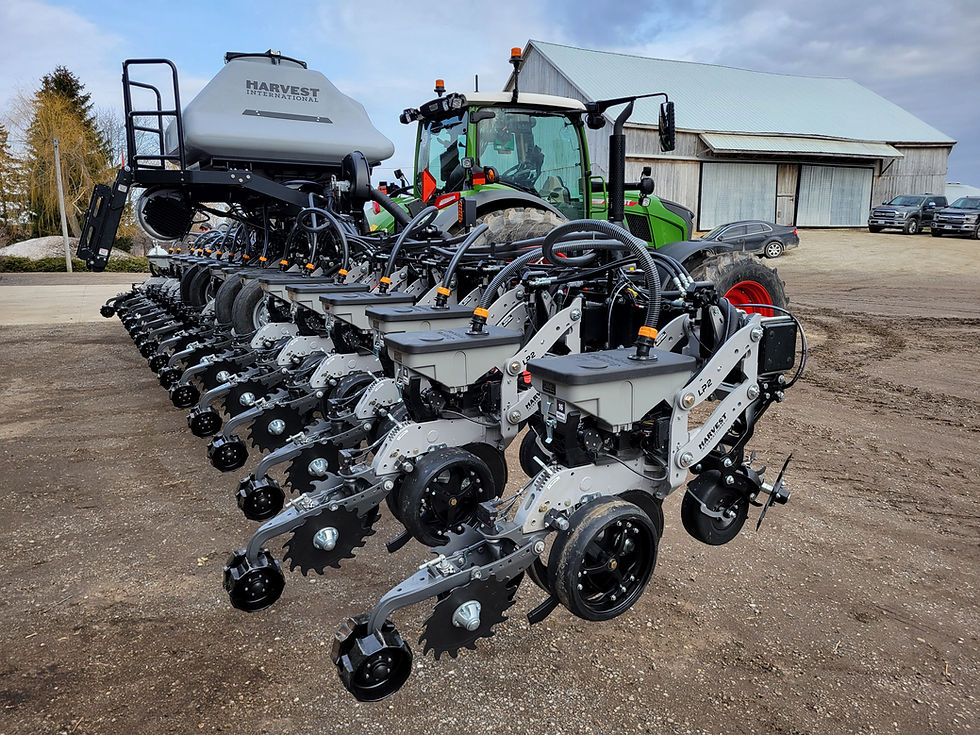

Built for Precision and high speed planting. With the most durable row units in the industry and many different frame options the configurations are nearly endless. See the Gallery below for some of the builds we have done.
Row Unit Features
-
Laser-cut, high tensile steel construction Stronger than Cast-Iron
-
15.4" Vertical Travel (Laserpro X)
-
QuickRelease™ closing wheel mount
-
Hydraulic Down Force-Ready X-Plate
-
Parallel link arms w/ tapered, high-strength polymer bushings
-
Lateral closing wheel adjustment
-
Built-in camber adjustment to easily adjust gauge wheel angle to stay true against disc openers
-
Greaseless lateral adjust on gauge wheel arm
-
Compatible with all Precision Planting components
80 foot and 90 foot wide planters now available.
Bar Features
​
-
8"Twin 10", 15", 20", 22" and 30" Spacing
-
20, 30, 40, 44, 60, 66, 80, and 90 foot wide front fold bars
-
Bulk Fill up to 145 Bushel capacity
-
Mini, 1.6, 1.9, or 3 bushel hoppers
-
Front or Rear running tires for front Fold Frame
-
1600 Gal liquid tank option on 60' FT with CSD
-
Up to 185 cu/ft dry or 1000 gal liquid Fert on board with central fill on series 2 bar
-
Hydraulic weight distribution S2 Bar
-
Auto Frame height control for hilly conditions
-
5 Section Frame Flex option 60' and larger
-
620/40 R22.5 tire option on 40-90 foot models
-
Drilled spindles for air inflation.
-
Aulari Single disk dry openers
-
Sunco unit mount dry openers
-
And more...
VORTEX CSD
Up to 48 rows with NO jumper hoses
1600 Gallon liquid tank on PB60FT
Front Trailing frames available 40-90' models
Drilled spindles for PTG tire pressure control.
Adaptive Frame Height for series 2 planters. Also retrofit option for any series 2 planter
